About us

Hoa Phat Group is a leading steel producer in Southeast Asia. In 2021, as part of our vertical diversification strategy, we invested in a new factory to become the largest manufacturer producing ISO dry containers in ASEAN.

Our advantage lies in using natural, weather-resistant HRC grade SPA-H steel from Hoa Phat Dung Quat Steel as the primary material in container production. With the extensive experience in steel production, we guarantee the quality and stability of Hoa Phat branded container products.

box-icon-1 1st phase 200.000 TEU/Year
box-icon2 Container yard 150.000 m2
box-icon3 Target 500.000 TEU/Year
box-icon4 Manpower 1200 Employees
box-icon-5 Total area 400.000 m2

Factory

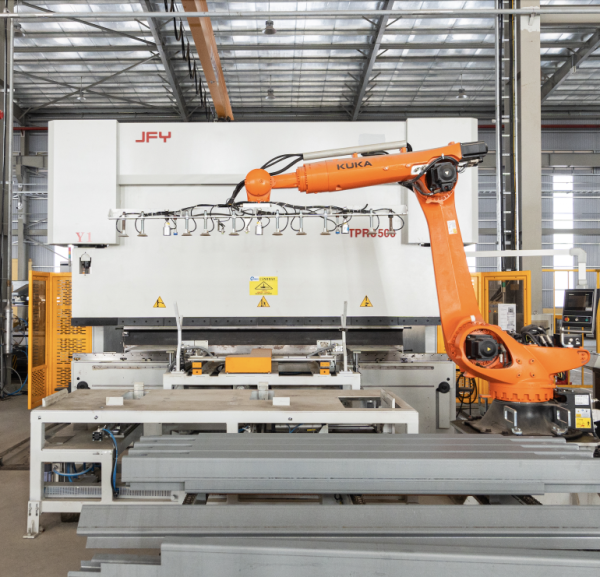

Steel coil pretreatment and cold work processing lines

Our steel coil pretreatment and cold work processing lines incorporate advanced technology, ensuring consistent control over productivity and dimensional stability during component machining

https://sudospaces.com/uploads/2023/10/day-chuyen-tien-xu-ly-2.png

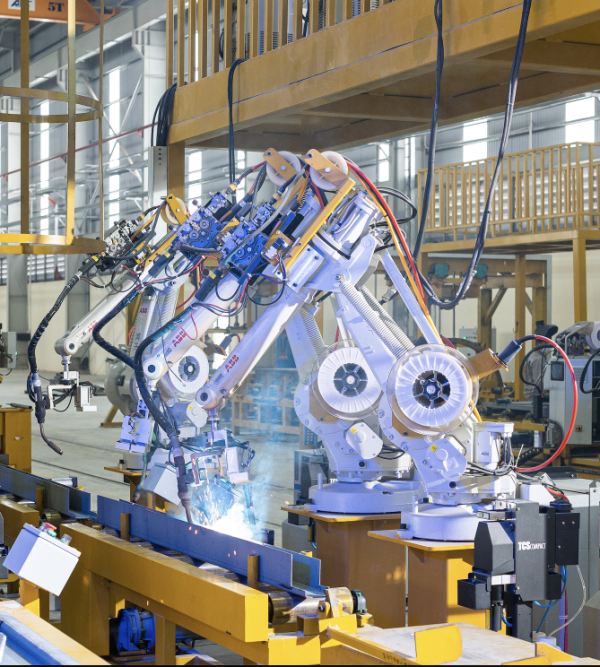

Welding line

To improve efficiency and reduce labor requirements, our welding line minimizes transportation between production stages. Over 90% of welding operations are done by robots and automatic machines, using MIG and TIG welding technology

https://sudospaces.com/uploads/2023/10/day-chuyen-han-3.png

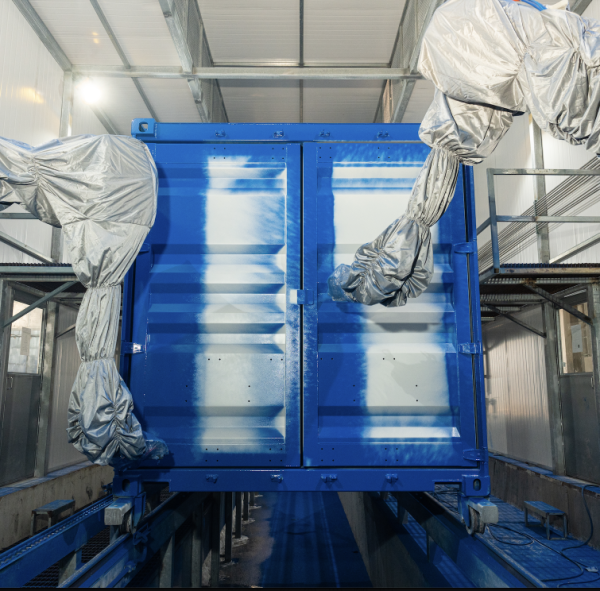

Painting line

The painting line features automated paint sprayers and robots, allowing for precise control and minimizing paint consumption for each layer

https://sudospaces.com/uploads/2023/10/day-chuyen-son-2.png

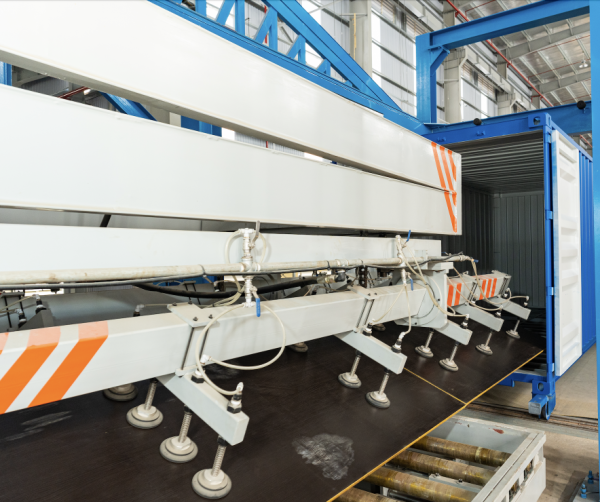

Finishing line

The finishing line is arranged for quick and accurate construction performance, with automatic installation of flooring, floor drilling, and asphalt painting

https://sudospaces.com/uploads/2023/10/day-chuyen-hoan-thien-2.png

Product

Specification

Dry Cargo
Steel Container

20' GP

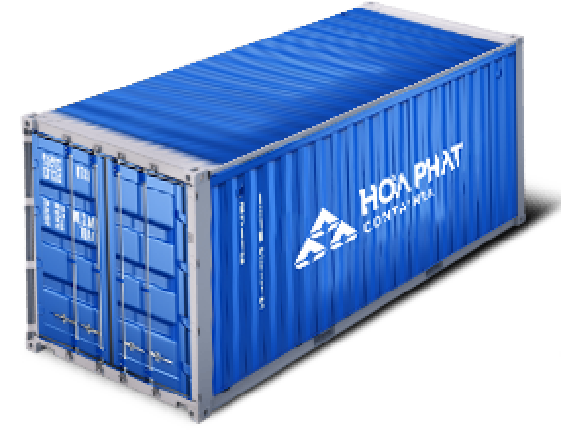

product 20' GP

40' GP

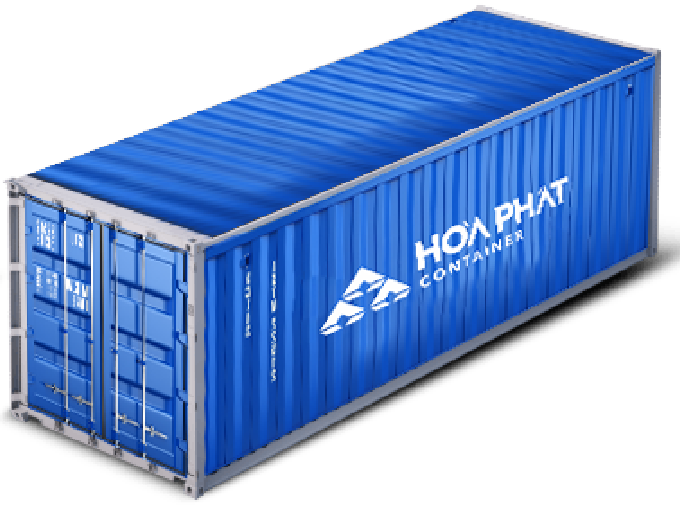

product 40' GP

40' HC

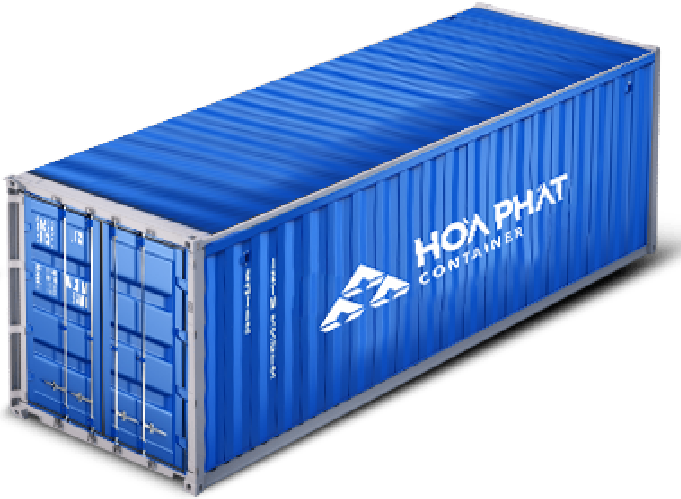

product 40' HC
Length External / Internal
6,058/5,896
12,192 /12,032
12,192 /12,032
Width External / Internal
2,438 / 2,352
2,591 / 2,393
2,438 / 2,352
Height External / Internal
2,591 / 2,393
2,438 / 2,352
2,896 / 2,700
Door Opening Width/Height
2,340 / 2,280
2,340 / 2,280
2,340 / 2,585
Maximum Gross Weight, Kg/ Lbs
30,480 / 67,200
32,500 / 71,650
32,500 / 71,650
Tare Weight, Kg/ Lbs
2,100 / 4,630
3,650 /8,050
3,800 / 8,380
Maximum Payload, Kg/ Lbs
28,380 / 62,570
28,850 /63,600
28,700 / 63,270
Inside cubic capacity, cu.m / cu. ft.
33.2 / 1,170
67.7 / 2,393
76.4 / 2,700

Standard
& Certificate

  • BV Factory Approval
  • ABS Factory Approval
  • DEKRA Factory Approval
  • BV HPC-22G1-01
  • BV HPC-45G1-01
  • BV HPC-22G1-02
  • BV HPC-22G1-03
  • BV HPC-22G1-05
  • BV HPC-45G1-02
  • BV HPC-45G1-03
  • Environmental license - page 1
  • Environmental license - page 2
  • Environmental license - page 3
https://sudospaces.com/uploads/2023/10/factory-approval.png

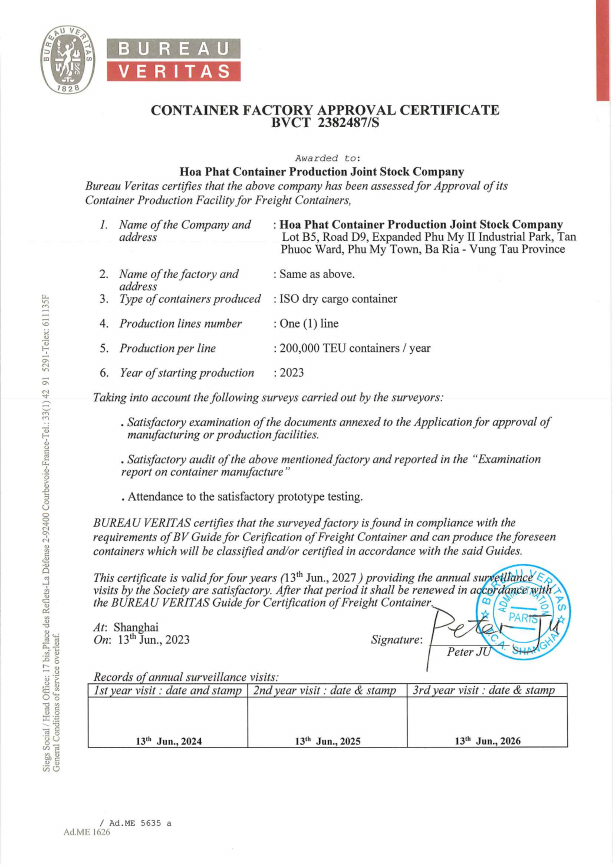

BV Factory Approval

https://sudospaces.com/uploads/2024/11/abs-factory-approval.png

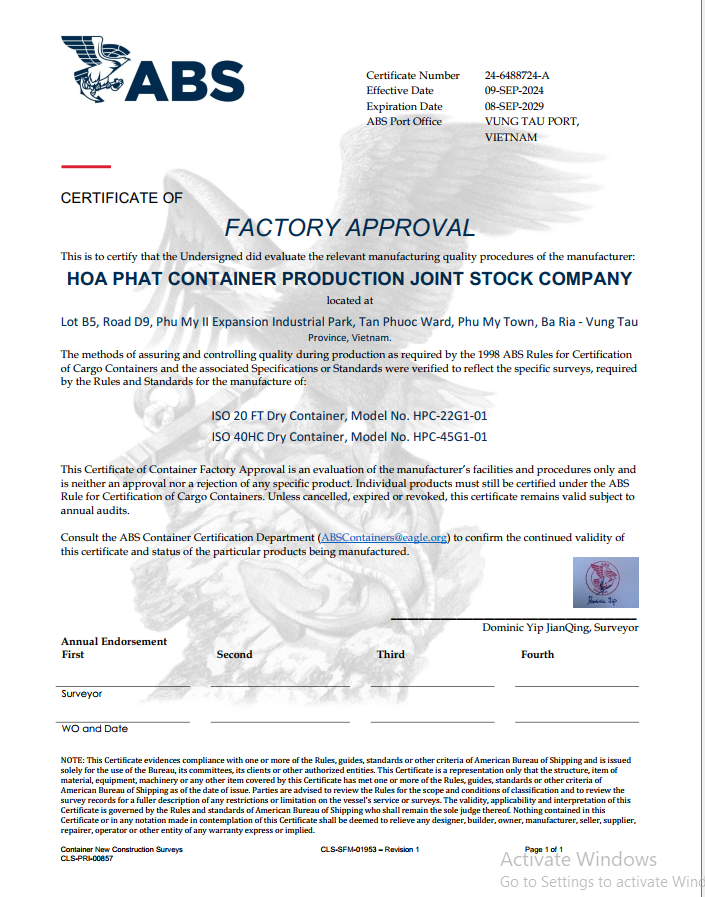

ABS Factory Approval

https://sudospaces.com/uploads/2024/10/dekra-factory-approval.png

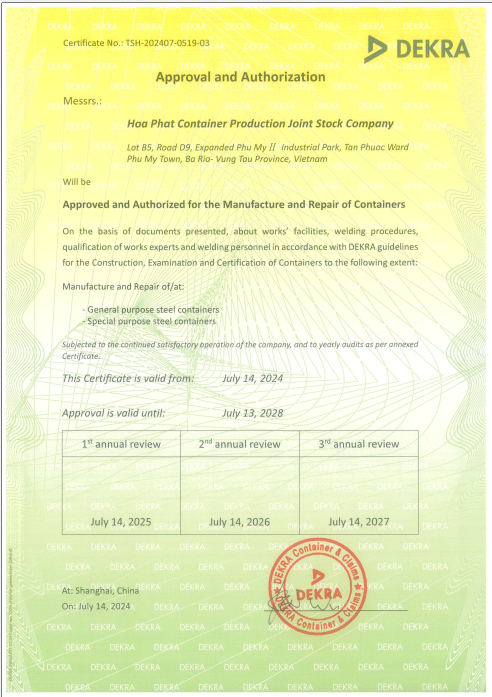

DEKRA Factory Approval

https://sudospaces.com/uploads/2023/10/bvct2382621s-hpc-22g1-01.png

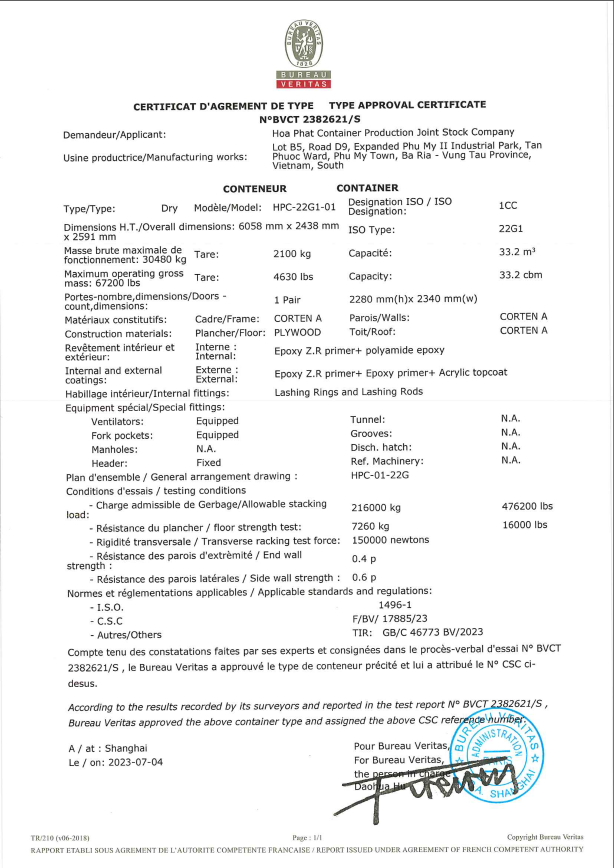

BV HPC-22G1-01

https://sudospaces.com/uploads/2023/10/bvct2382619s-hpc-45g1-01.png

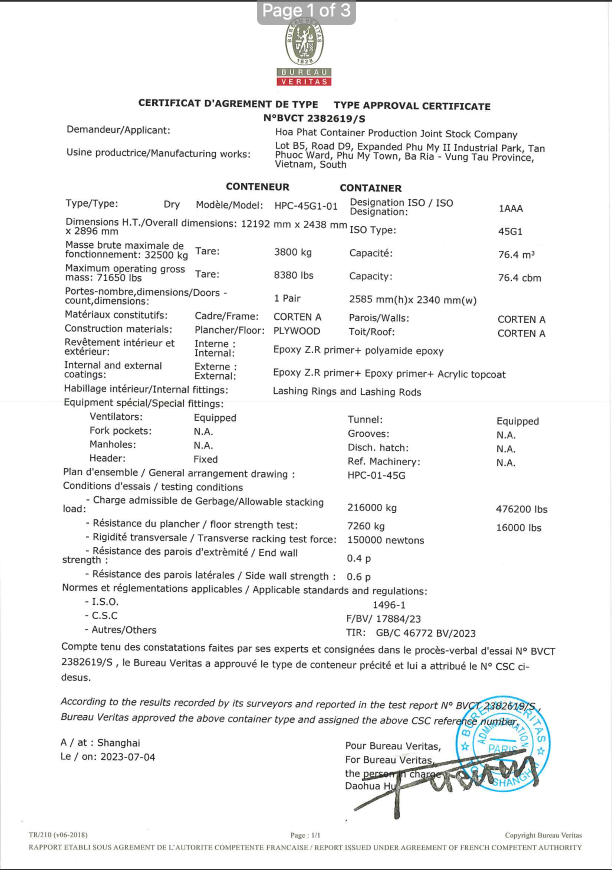

BV HPC-45G1-01

https://sudospaces.com/uploads/2024/10/bv-hpc-22g1-02.png

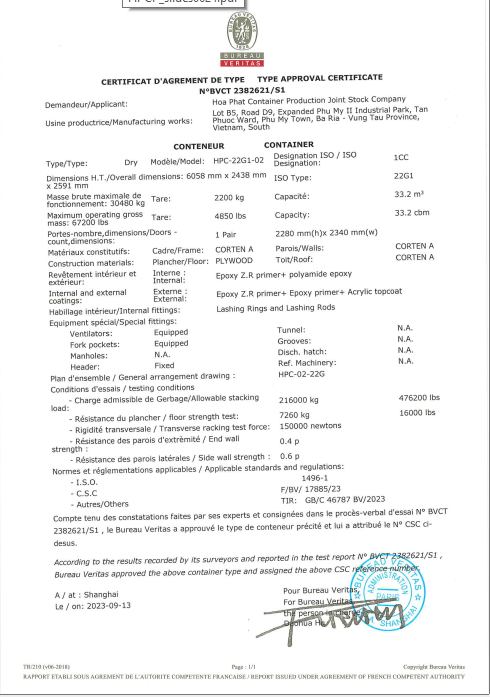

BV HPC-22G1-02

https://sudospaces.com/uploads/2024/10/bv-hpc-22g1-03.png

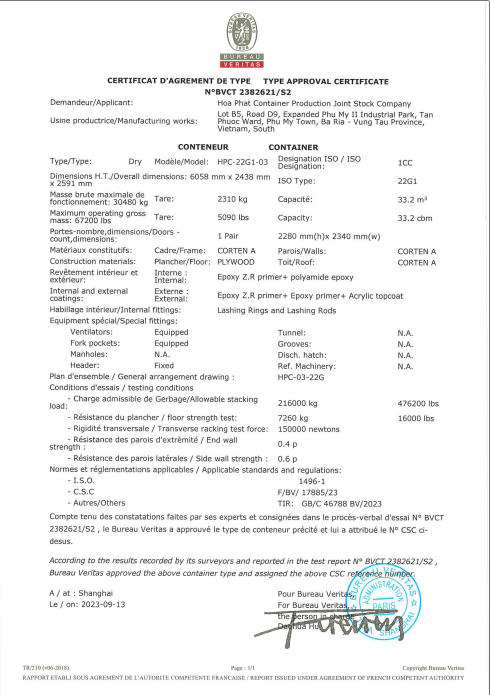

BV HPC-22G1-03

https://sudospaces.com/uploads/2024/10/bv-hpc-22g1-05.png

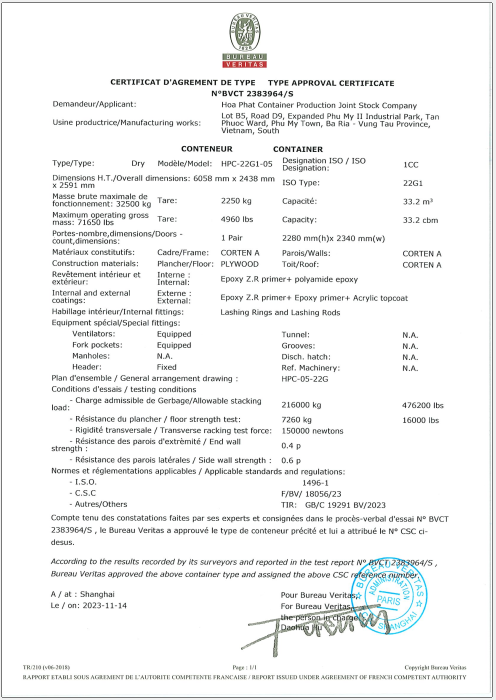

BV HPC-22G1-05

https://sudospaces.com/uploads/2024/10/bv-hpc-45g1-02.png

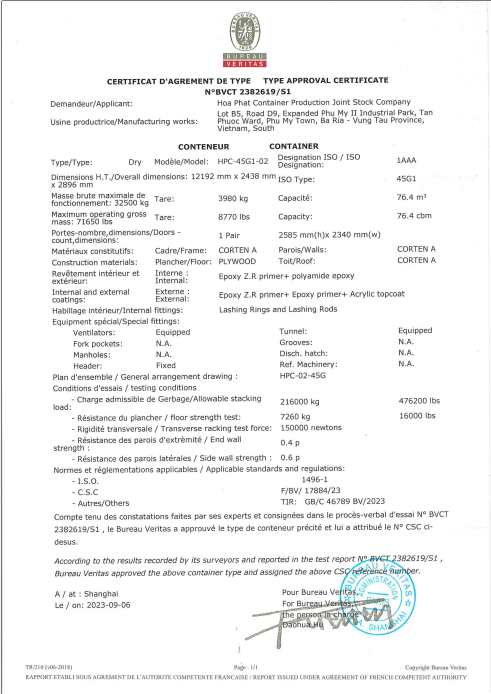

BV HPC-45G1-02

https://sudospaces.com/uploads/2024/10/bv-hpc-45g1-03.png

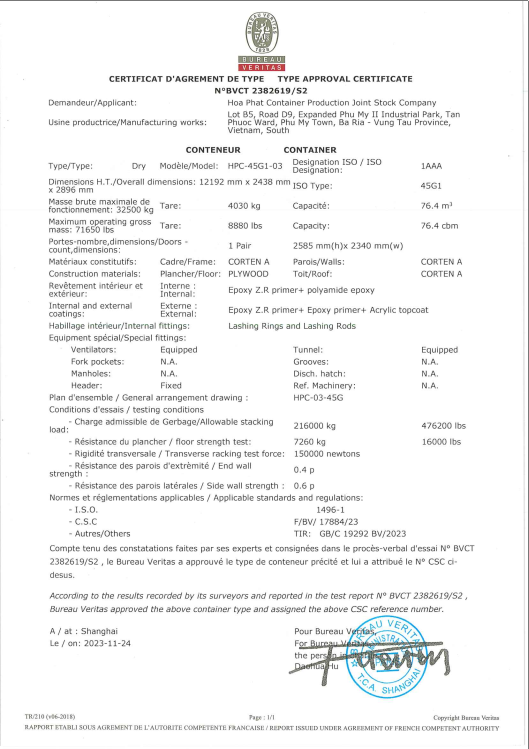

BV HPC-45G1-03

https://sudospaces.com/uploads/2024/06/giay-phep-moi-truong-cap-ngay-12062023-1.jpg

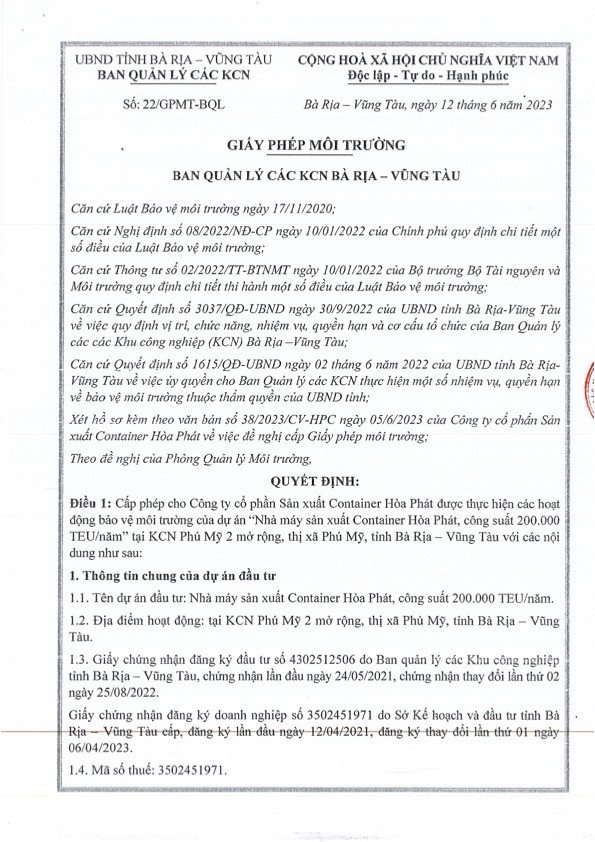

Environmental license - page 1

https://sudospaces.com/uploads/2024/06/giay-phep-moi-truong-cap-ngay-12062023-2.jpg

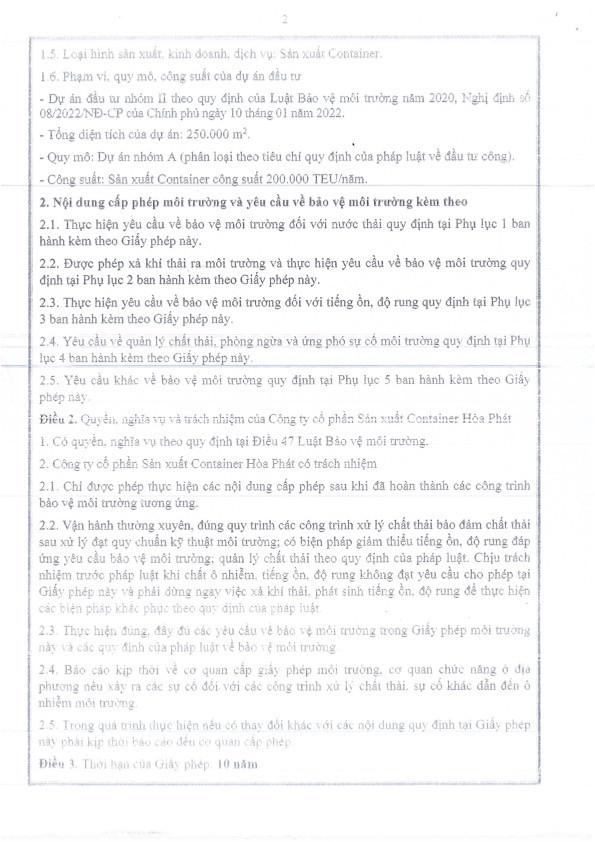

Environmental license - page 2

https://sudospaces.com/uploads/2024/06/giay-phep-moi-truong-cap-ngay-12062023-3.jpg

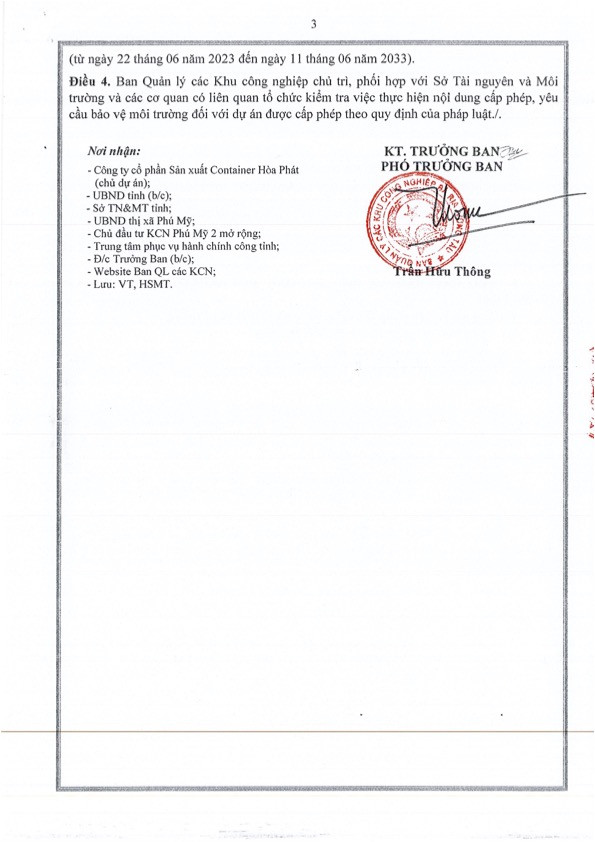

Environmental license - page 3
